    General Purpose Plastic Rectifier 1N4007 , UL94V-O Rate Flame Retardant

    Ask Lasest Price
    Brand Name : SILAN
    Model Number : 1N4007
    Certification : Original Factory Pack
    Price : Negotiation
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 290PCS
    Delivery Time : 1 Day
    • Product Details
    • Company Profile

    General Purpose Plastic Rectifier 1N4007 , UL94V-O Rate Flame Retardant

    GENERAL PURPOSE SILICON RECTIFIER

    VOLTAGE RANGE 50 TO 1000 Volts Current 1 Ampere


    FEATURES

    *Low cost construction

    *Low forward voltage drop

    *Low reverse leakage

    *High forward surge current capability

    *High temperature soldering guaranteed

    260℃/10 seconds, 0.375”(9.5 mm) lead length at 5 lbs(2.3kg) tension

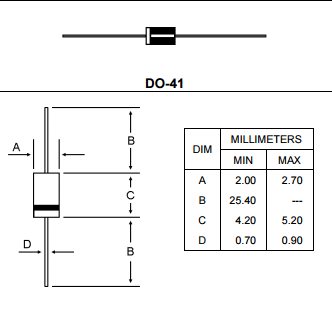

    MECHANICAL DATA

    *Case:Transfer Molded Plastic

    *Epoxy: UL94V-O rate flame retardant

    *Terminals:Solderable Per MIL-STD-202 Method 208

    *Polarity:Color band denotes cathode end

    *Mounting position: Any

    *Weight: 0.012 ounce. 0.33 gram (approx)
