    SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : SS32
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 8800pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier


    SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier


    Features

    • Low Profile in SMC Package

    • Low power loss, high efficiency

    • Low Forward Voltage Drop

    • Plastic package has Underwriters Laboratory Flammability Classification 94V-0

    • RoHS Compliant


    Mechanical Data

    Case: JEDEC DO-214AB(SMC) molded plastic

    Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

    Polarity: Color band denotes the cathode end

    Weight: 0.007 Ounce, 0. 21 gram


    Maximum Ratings & Electrical Characteristics (TAmbient=25ºC unless noted otherwise)

    SymbolsDescriptionSS32SS33SS34SS35SS36SS38SS39SS310Unit
    VRMSMaximum RMS voltage1421283542566370V
    VRRMMaximum repetitive peak reverse voltage20304050608090100V
    VDCMaximum DC blocking voltage20304050608090100V
    I(AV)Maximum average forward rectified current (FIG.1)3.0A
    IFSMPeak forward surge current (JEDEC Method)80.0A
    VFMaximum instantaneous forward voltage at 3.0A0.500.700.85V
    IRMaximum DC reverse current at rated DC blocking voltageTA =25°C 2.0mA
    TA =100°C 20.0
    RθJAMaximum thermal resistance, Junction to Ambient17°C/W
    CJTypical Junction Capacitance (NOTE)300pf
    TJOperating junction temperature range-50 to +125-50 to +150°C
    TSTGStorage Temperature Range-65 to +150°C

    NOTES: Measured at 1MHz and applier reverse voltage of 4.0VDC.


    Typical Characteristics Curves

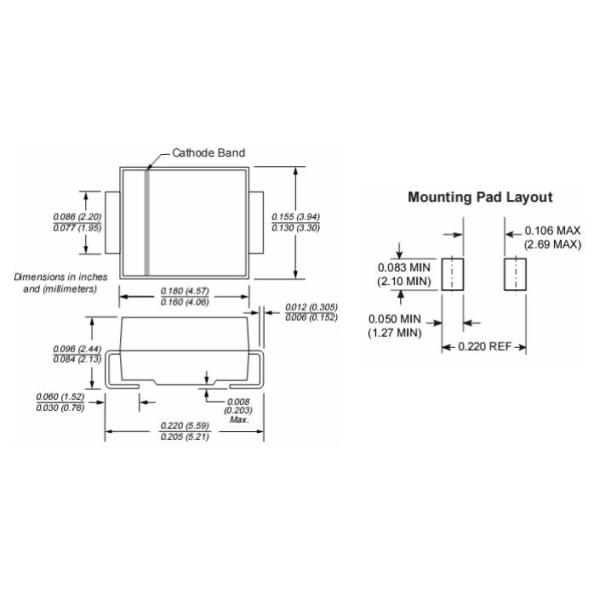

    Dimensions in inches (mm)
