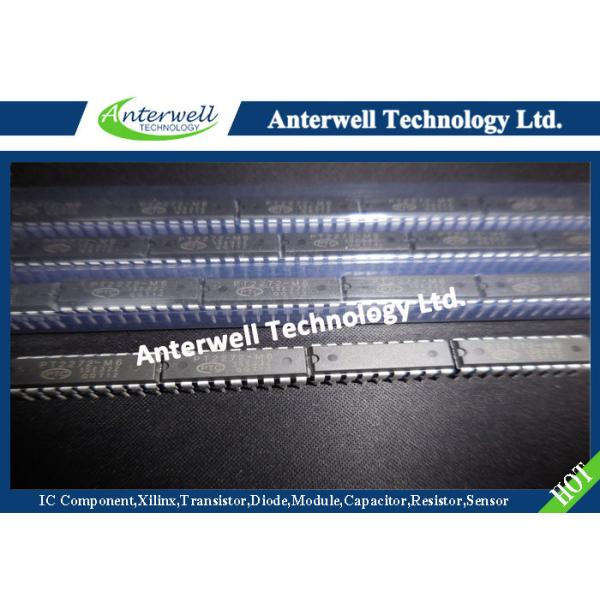

PT2272-M6

Remote Control Decoder led circuit board printed circuit board

FEATURES

• CMOS Technology

• Low Power Consumption

• Very High Noise Immunity

• Up to 12 Tri-State Code Address Pins

• Up to 6 Data Pins

• Wide Range of Operating Voltage:

VCC=4~15V

• Single Resistor Oscillator

• Latch or Momentary Output Type

• Available in DIP and SOP

APPLICATIONS

• Car Security System

• Garage Door Controller

• Remote Control Fan

• Home Security/Automation System

• Remote Control Toys

• Remote Control for Industrial Use

BLOCK DIAGRAM

CODE BITS

The Code Bits are further modulated with a 38KHz carrier frequency and can be “0”, “1” or “f” bit. Their waveforms are shown in the diagram below.
